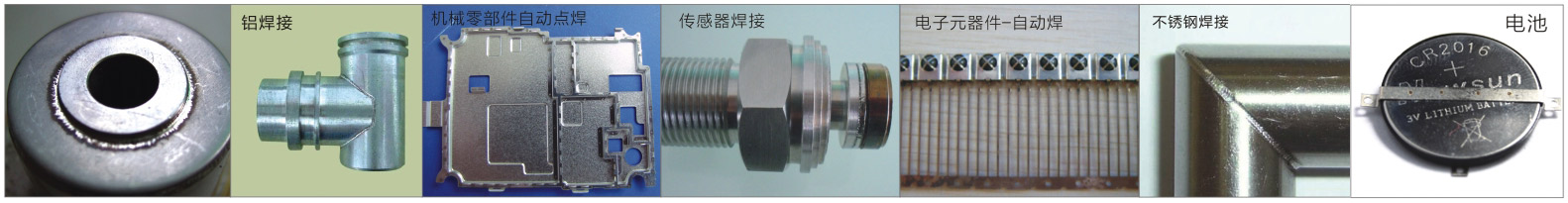

1. Lithum battery of smart phones, jewleries, electronic components, sensors,watches,fine mechanics,communication,artware,high-tech cabinet,elevator accessories,stainless steel doornob,high-end furniture,stainless steel wine pot etc.
2. The machine can be used of laser welding between carbon steel,general alloy steel, stainless steel, and other different steel, welding between stainless and steel-mild steel,416 stainless steel and 310 stainless steel,347 stainless steel and HASTALLY nickel alloy, nickel electrode and cold forging steel.
1. AHL-AW400/AW600 Laser Mold Welding Machine is developed and produced from the technology of German laser welding technology.
2. using computer programming can achieve automatically or semi-automatically spot welding, jam welding,stitch welding,seal welding for complicated straight lines, arc or any other routes.
3. The max welding frequency of thelaser welding machine can choose 50-100hz and the speed could be at 18mm/s. This can improve the effeciency of welding.

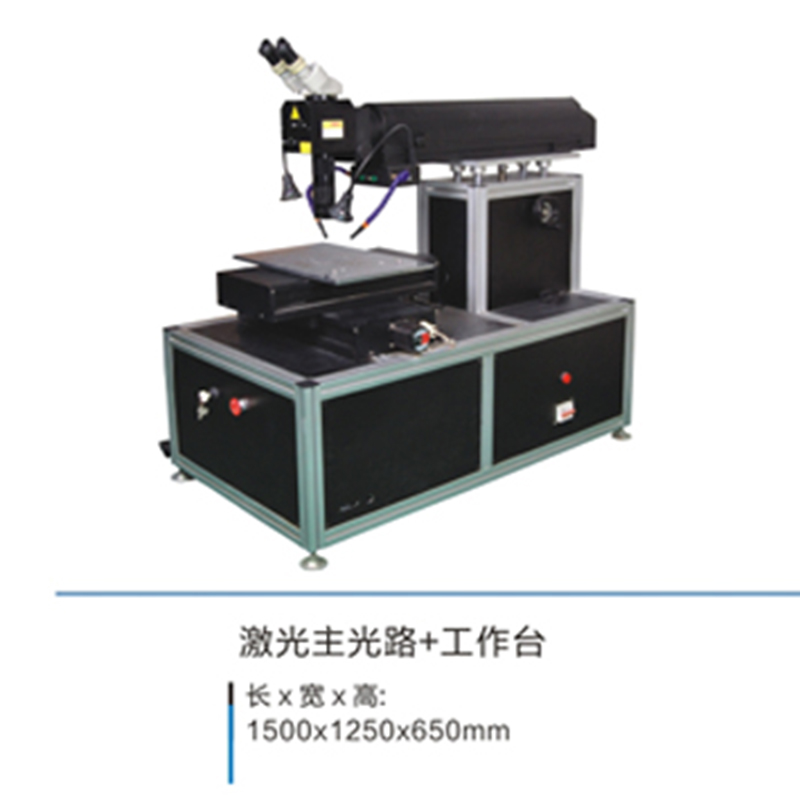

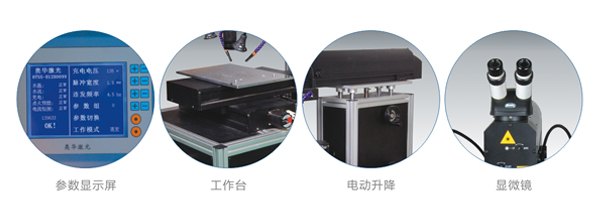

4. The machine can use 4-dimensional ball screw worktable with personal control system and rotatable worktable. It can weld cylindrical and variable shapes of things.
5. High accuracy of welding, fast speed, good effect,easy to operate;
Model | AHL-AW400 | AHL-AW600 |
Max laser power | 400W | 600W |
Laser wavelength | 1064nm | 1064nm |
Max energy per pause | 110J | 130J |
Laser welding depth | 0.1-1.5mm | 0.1-2.0mm |
Pause width | 0.3-20ms | 0.3-20ms |
Continuous welding frequncy | 1-100Hz | 1-100Hz |
Adjustable facula size | 0.2-2mm | 0.2-2mm |
Repeated accuracy | ±0.01mm | ±0.01mm |
Power consumption | ≤12KW | ≤13KW |
Power demand | 380V±10%/50Hz/40A | 380V±10%/50Hz/40A |
Control system | PLC or PC | PLC or PC |
Posiontioning | Red light positioning | Red light positioning |
Worktable route | 500mm*500mm*200mm | X1000/Y500/z600mm |
