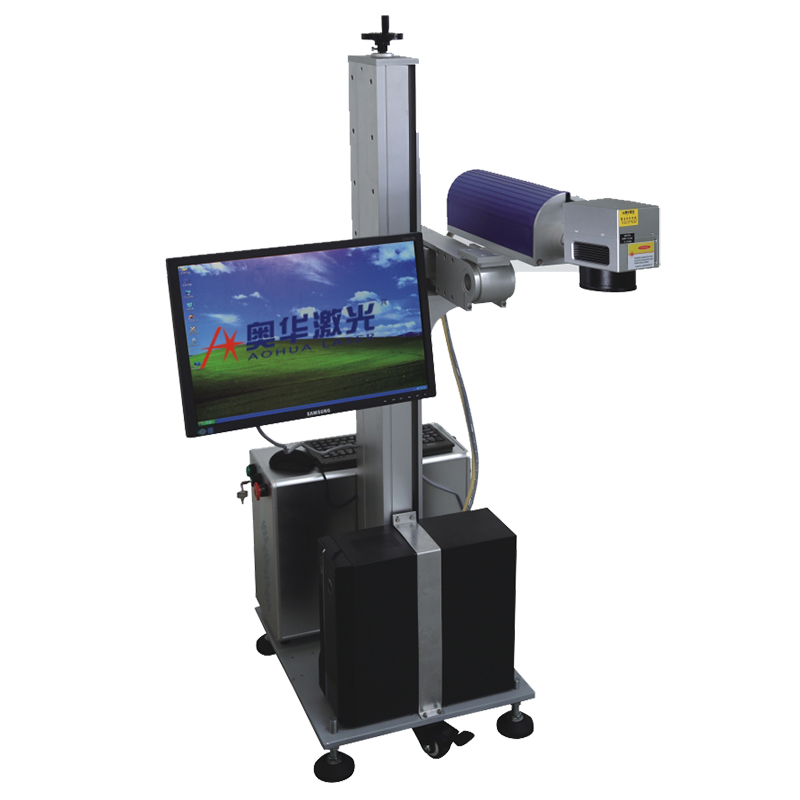

Fiber Laser Marking Machine


Product Introduction:
Fiber laser machine's resolution ratio is 1mm, it is 10 times above traditional products'. The power consumption is 1/25~1/10 of traditional products, speed is 3~5 times of traditional products.
The stabilility is superior. life is 10 times above tradtional products. Fiber laser marking system uses integrated design and fiber transfer. It can be widly used in industrial production.

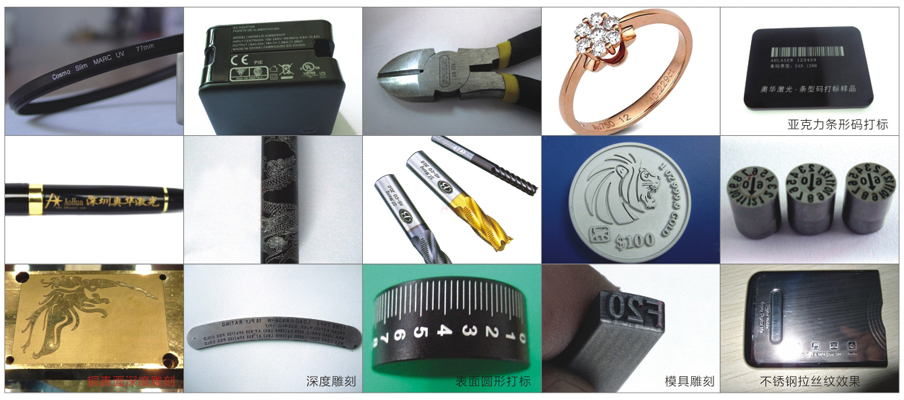

Product Application:

     Fiber Laser Marking Machine  is widely used in hardware, tools, kitchen ware, PVC products, computer keyboards, metal, button, integrated circuit, packing bottles, glasses frame, tap, etc.

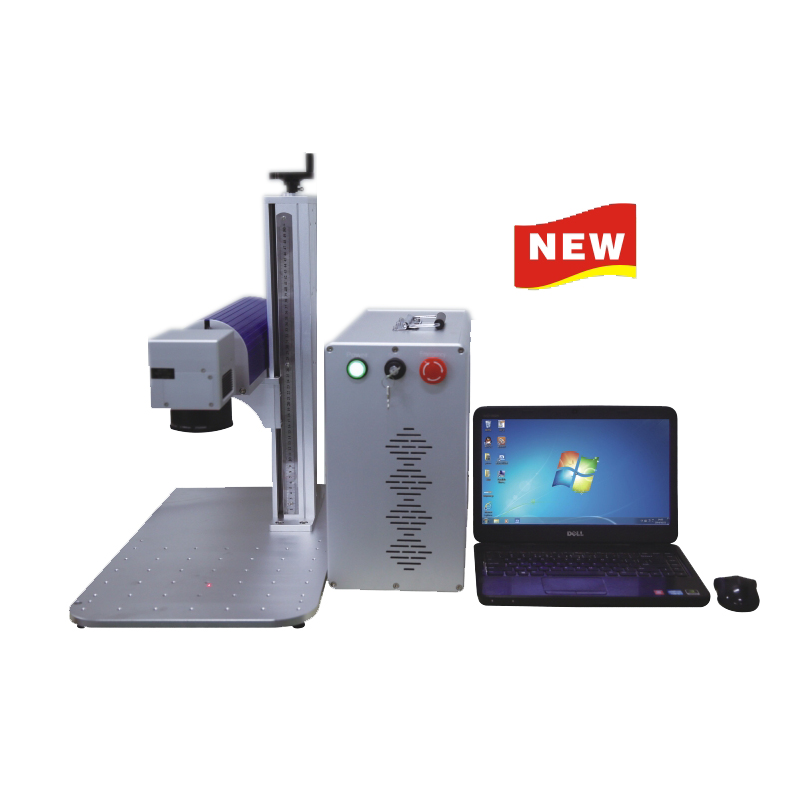

Fiber Laser Marking Machine

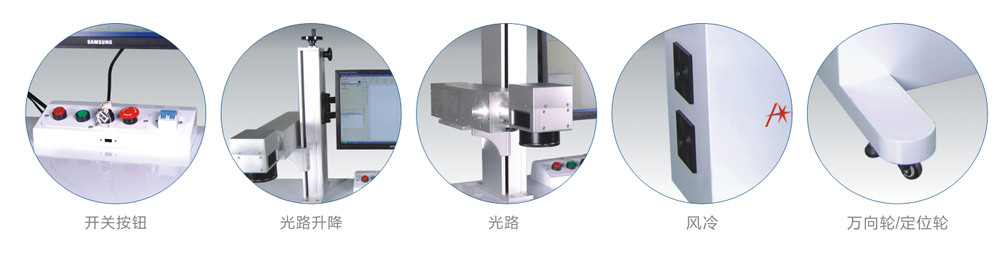

Product Advantages:

        Fiber laser machine's resolution ratio is 1mm, it is 10 times above traditional products'. The power consumption is 1/25~1/10 of traditional products, speed is 3~5 times of traditional products.

       The stabilility is superior. life is 10 times above tradtional products. Fiber laser marking system uses integrated design and fiber transfer. It can be widly used in industrial production。

       It can be operate by control connection (USB) with no material consumption, The cost depreciation will be decrease a lot. It has high effiency, long life and maintenance-free. It is one of the sucessful products in Aohua.


laser engravers

Technical Parameter:
ModelAHL-FB10AHL-FB20AHL-FB50
Max power 10W20W50W
Laser wave length 1064nm1064nm1064nm
Optical quality
M2<2
M2<2M2<2
Laser repeatition frequency 20KHz-100KHz20KHz-100KHz20KHz-100KHz
Standard engraving range100mm*100mm100mm*100mm100mm*100mm
Selective engraving range

50mm*50mm

150mm*150mm

50mm*50mm

150mm *150mm

50mm*50mm

150mm*150mm

Engraving depth ≤1.2mm≤1.2mm≤1.2mm
Engraving speed >800 characters/s>800 characters/s>800 characters/s
Minimum linear width 0.01mm0.01mm0.01mm
Minimum character 0.15mm0.15mm0.15mm
Repeatition accuracy ±0.002mm±0.002mm±0.002mm
Power consumption ≤500W≤500W≤500W
Power demand200V±10%/50Hz/4A200V±10%/50Hz/4A200V±10%/50Hz/4A
Lasermade in China/IPGmade in China/IPGmade in China/IPG
Laser mold life >100000h>100000h>100000h
Galvanometer OptionalOptionalOptional
Cooling style AirAirAir
Control connection USBUSBUSB
