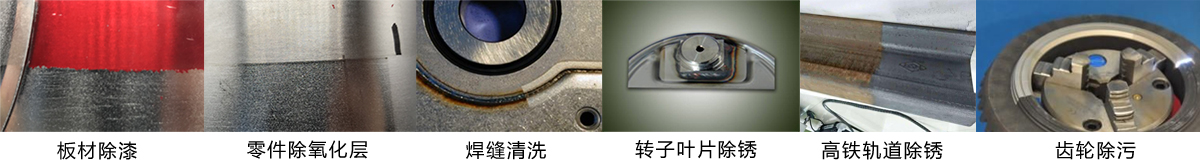

Laser cleaning is currently widely used in industry. It is mainly used for rust removal, paint removal, oil removal and oxide film removal of precision parts. Due to its high efficiency, energy saving and environmental protection, it is used in molds, automobile manufacturing, cultural relics restoration and shipbuilding. And other industries are very popular.
High cleanliness, accurate positioning cleaning, non-contact cleaning, protection of brittle material surfaces, effective removal of micron-level pollution particles, environmental protection, no consumables
Laser cleaning equipment is a new generation of surface treatment high-tech products, which are easy to install, operate and realize automation. The operation is simple, the power is turned on, and the equipment is turned on, you can clean without chemicals, media, and water. The focus can be manually adjusted, and the surface can be cleaned. The cleaning surface has high cleanliness and can remove resin, paint, and oil on the surface of the object. , Stains, dirt, rust, coatings, plating and oxide layers, and are widely used in the industry, covering ships, auto repair, rubber molds, high-end machine tools, rails, and environmental protection.

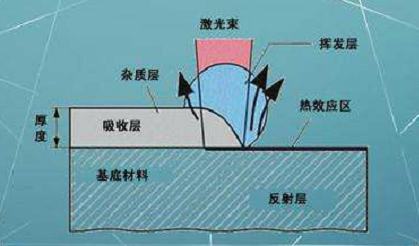

Laser cleaning technology refers to the use of high-energy laser beams to irradiate the surface of the workpiece to cause the dirt, rust or coating on the surface to evaporate or peel instantly, and effectively remove the adhesion or surface coating on the surface of the cleaning object at a high speed, so as to achieve a clean process. It is a new technology based on the interaction effect of laser and matter.
Average laser power | ≥500W |
Output power instability | <3% |
Power adjustment range (%) | 10-100(Gradient adjustable) |
pulse width(ns) | 130-160 |
Center wavelength(nm) | 1064 |
Repeat frequency(KHz) | 20-50(Gradient adjustable) |
Single pulse energy(mj) | 25.00 |
Maximum peak power(Kw) | 180 |
Fiber core(μm) | 300 |
Cleaning efficiency(m2/h) | 20 |
Focal length(mm) | 210/160Replaceable |
Cooling method | Water cooling |
