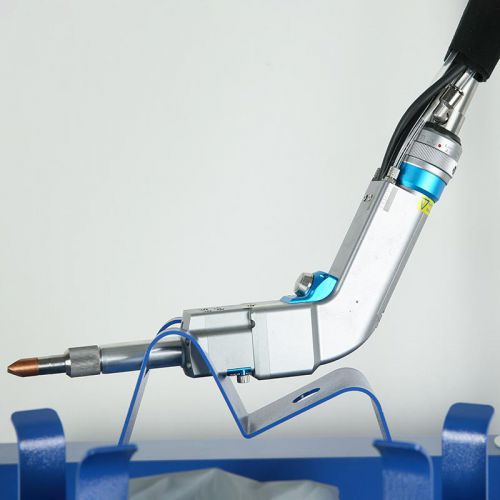

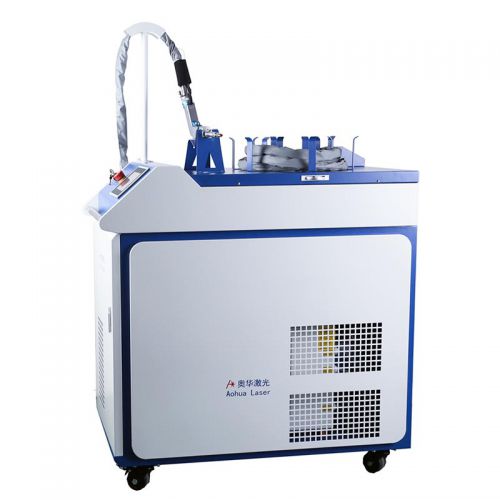

Hand held optical fiber laser welding machine is a kind of laser welding equipment, which is transmitted by optical fiber, collimated to parallel light by collimating lens, and then focused on the workpiece by hand-held laser welding joint. It is commonly used in spot welding of large-scale mold and electronic components.

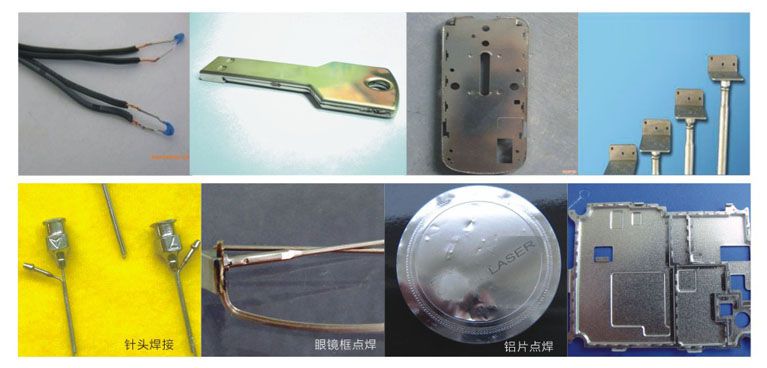

It is used in precision welding of optical communication devices, it, medical, electronics, batteries, optical fiber coupling devices, kinescope electron gun, metal parts, mobile phone vibration motor, clock precision parts, automobile steel sheet, etc.
1. The energy distribution of welding spot is uniform, which has the best spot for welding.

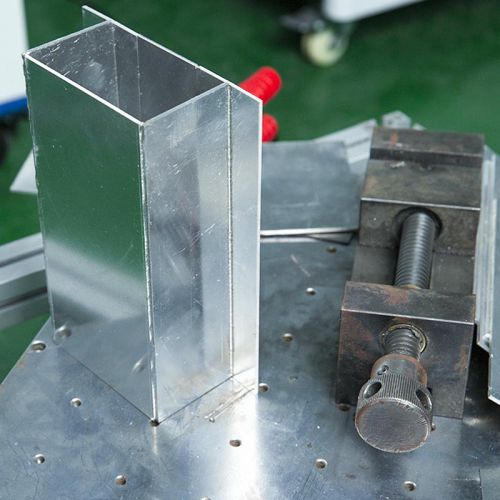

2. It is suitable for electric welding of various complicated welding seams, various devices, and seam welding of thin plates within 1 mm.
3. It adopts the ceramic concentrator chamber imported from Britain, which is corrosion-resistant, high-temperature resistant and has long service life.
4. Portable welding is flexible and convenient, up to 3m optical fiber can be equipped with 5m optical fiber.
5. CCD camera monitoring system is optional for easy observation and accurate positioning.
6. Automatic chemical fixture can be customized to realize the mass production of products.
Model | AHL-FW 200 | AHL-FW400 |
Max laser power | 200w | 400w |
Max monopulse power | 90J | 110J |
Laser wavelength | 1064nm | 1064nm |
Waveform | dipulse combination | dipulse combination |
Laser welding depth | 0.1-1.2mm | 0.1-1.6mm |
Pulse width | 0.2-20ms | 0.2-20ms |
Continious laser welding frequency | 1-40hz | 1-40hz |
Facula size adjustable range | 0.4-2.0mm | 0.4-2.0mm |
Optical length | 3m/5m/10m/20m | 3m/5m/10m/20m |
Trigger mode | internally control | external control |
Optical quantity | 1-4 | 1-4 |
Spectral way | power/feedback | power/feedback |
Feedback way | electricity /power | electricity /power |
Power consumption | ≤9kw | ≤12kw |
Electrical demand | 220vac/50hz | 380vac/50hz |
Main engine | 890mm*530mm*1030mm | 125kg |
Cooling machine | 790mm*630mm*880mm | 87kg |
