Aohua Laser 2020 new product research and development, laser spot welding machine. Lighter, more flexible and humanized design, specifically designed for the electronics industry and jewelry industry, can be used for gold and silver jewelry, electronic components repair holes, spot welding, welding holes, etc.
Applicable to: stainless steel, copper, gold, silver, K gold and other metals and their alloys.

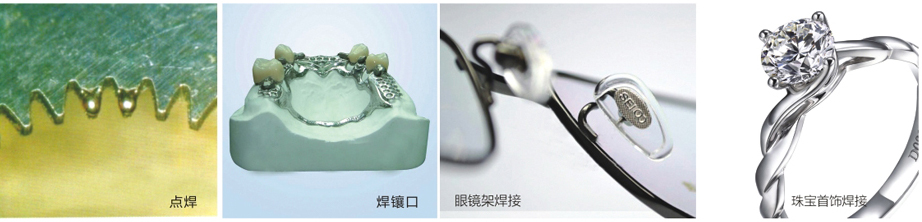

Mainly used in: jewelry, electronic components, communications, handicrafts and other industries.
1. Improved by adopting German advanced design technology. This series of products adopts ergonomic design and is produced with top international accessories. The whole machine is more reliable and durable.
2. It is small in size and can be placed on the desktop for easy transportation.
3. Convenient operation, good welding effect, stable equipment and low failure rate.
4. A special microscope observation system equipped with a cross cursor and a high-speed electronic filter device to protect the eyes of the operator.
5. The volume is lighter and convenient for storage, movement and operation.
| Model | AHL-W75 | AHL-W90 | AHL-W220 |
| Max laser power | 75W | 90W | 220W |
| Laser wavelength | 1064nm | 1064nm | 1064nm |
| Max monopulse power | 50J | 70J | 90J |
| Pulse width | 0.2-10ms | 0.2-10ms | 0.2-10ms |
| Continuous laser welding frequency | 0.5-20Hz | 0.5-20Hz | 0.5-20Hz |
| Adjustable range of spot size | 0.2-2mm | 0.2-2mm | 0.2-2mm |
| Control system | Micro-computer | ||
| Total power | ≤4KW | ≤6KW | ≤9KW |
| Eletricity demand | 220V±10%/50Hz/30A | ||
For more information about the price of laser welding machine, please click the online consultation.
