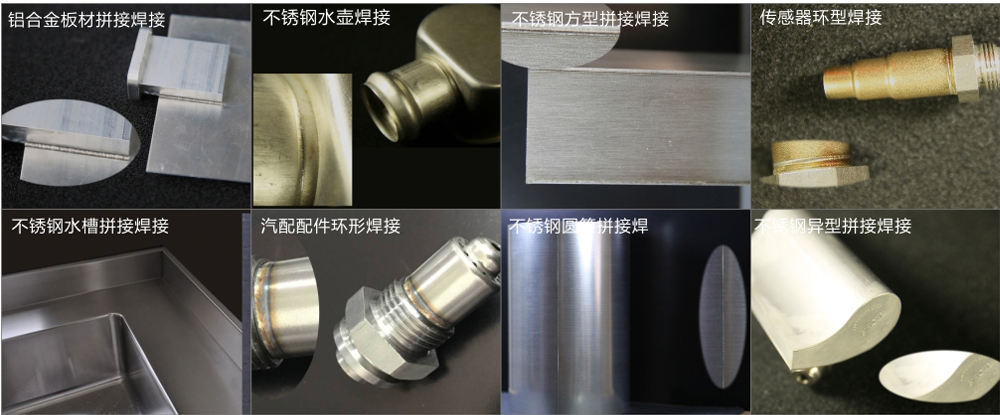

The equipment is mostly used for hardware precision welding processing in many industries, such as household appliances, kitchen and bathroom industry (faucet and round pipe welding, kitchenware sheet metal welding, washing machine inner tube welding, etc.), electronic industry precision hardware parts welding.
1. High-quality efficiency;
2. Ultra-low power;
3. Save labor;
4. Stable performance.
| Model | AHL-FL1000W |
| Laser | Continuous pulse |
| Laser wavelength | 1070nm |
| Maximum laser output function | 1000W |
| Power adjustment range | 1-100% |
| Repeat frequency | 5-10KHz（Adjustable） |
| Pulse Width | Continuous light |
| Welding depth | ≤1.2mm |
| Repeat accuracy | ±0.01mm |
| Power stability | ±0.2% |
| Laser working medium | Rare earth doped fiber |
| Fiber length | 10m（standard） |
| Laser mode | Single mode / Multimode |
| Optical fiber interface | QBH |
| Operation system | PC |
| Laser module life | >100000hrs |
| Cooling method | Water cooling |
| Power | 6KW |
| Electricity demand | 220V±10%/50HZ/30A 380V±10%/50HZ/30A |
