The laser marking system adopts integrated design and optical fiber transmission, which is easy to be integrated into the industrial production process. The laser can be operated directly through the control interface (USB), without consumables, and the depreciation cost of the product is greatly reduced. It has high efficiency, long life and maintenance free performance that traditional laser does not have. It is one of the successful examples of cooperation between Aowa laser and German laser

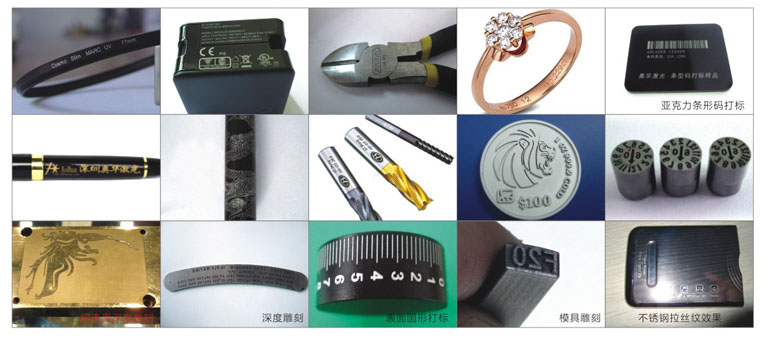

Portable UV laser marking machine has a wide range of applications, especially suitable for laser marking engraving of hardware tools, knives, kitchenware, plastic products, computer keyboards, metal accessories, buttons, integrated circuits, packaging bottles and cans, glasses frame, sanitary ware faucet and other products.
The resolution is 1 micron, which is more than 10 times of the traditional products; the power consumption is 1 / 25-1 / 10 of the traditional products, and the speed is more than 3-5 times of the traditional products; the stability of similar products is incomparable, and the service life is more than 10 times of the traditional products. Portable laser marking machine is small in size, light and convenient to carry. According to the promotion of the country's stall culture, Aohua laser actively designed this portable laser marking machine. It can be marked clearly on metal / non-metal, 0 consumables, and the speed of reaching the standard is fast. Laser marking of Chinese characters / letters / numbers / patterns for customized Necklaces / woodwork / handicrafts.
1. It is more light and portable;
2. The effect of reaching the standard is good;
3. Energy saving, zero consumables, permanent marking;
4. Metal / nonmetal marking is possible;
5. The maintenance cost is very low;
6. It is easy to operate, easy to learn, easy to understand and easy to use.
Model | AHL-FB10 | AHL-FB20 | AHL-FB50 |
Max laser power | 10w | 20w | 50w |
Laser wave length | 1064nm | 1064nm | 1064nm |
Optical quality | M2<2 | M2<2 | M2<2 |
Repeatition frequncy | 20khz-100khz | 20khz-100khz | 20khz-100khz |
Standard engraving range | 100mm*100mm | 100mm*100mm | 100mm*100mm |
Apolegamic engraving range | 50mm*50mm 150mm*150mm | 50mm*50mm 150mm*150mm | 50mm*50mm 150mm*150mm |
Engraving depth | ≤1.2mm | ≤1.2mm | ≤1.2mm |
Engraving linear speed | >800 characters/s | >800 characters/s | >800 characters/s |
Minimum line width | 0.01mm | 0.01mm | 0.01mm |
Minimum character | 0.15mm | 0.15mm | 0.15mm |
Repeatition accuracy | ±0.002mm | ±0.002mm | ±0.002mm |
Power consumption | ≤500w | ≤500w | ≤500w |
Power demand | 220V±10%/50Hz /4A | 220V±10%/50Hz/4A | 220V±10%/50Hz/4A |
Life of laser modular | >100000h | >100000h | >100000h |
Galvanometer | Optional | Optional | Optional |
Cooling style | Air cooling | Air cooling | Air cooling |
Control connection | USB | USB | USB |
