1. The hand-held fiber laser welding machine is a welding equipment in which the laser beam is transmitted through the optical fiber, collimated into parallel light by a collimating lens, and then focused on the workpiece by the hand-held laser welding head to perform welding. Spot welding of devices.
2. Used in precision welding of optical communication devices, IT, medical treatment, electronics, batteries, optical fiber coupling devices, picture tube electron guns, metal parts, mobile phone vibration motors, precision parts of clocks, automotive steel sheets, etc.
1. Welding spot energy is evenly distributed, with the best spot required for welding.
2. Suitable for all kinds of complex welding seams, electric welding of various devices, and seam welding of thin plates within 1mm.
3. The ceramic light-concentrating cavity imported from the United Kingdom is adopted, which is corrosion-resistant, high-temperature resistant and long life.
4. Hand-held welding is flexible and convenient, and 5 meters of fiber can be selected for up to 3 meters of fiber.
5. Optional CCD camera monitoring system, easy to observe and precise positioning.
6. Automated fixtures can be customized to realize mass production of products.

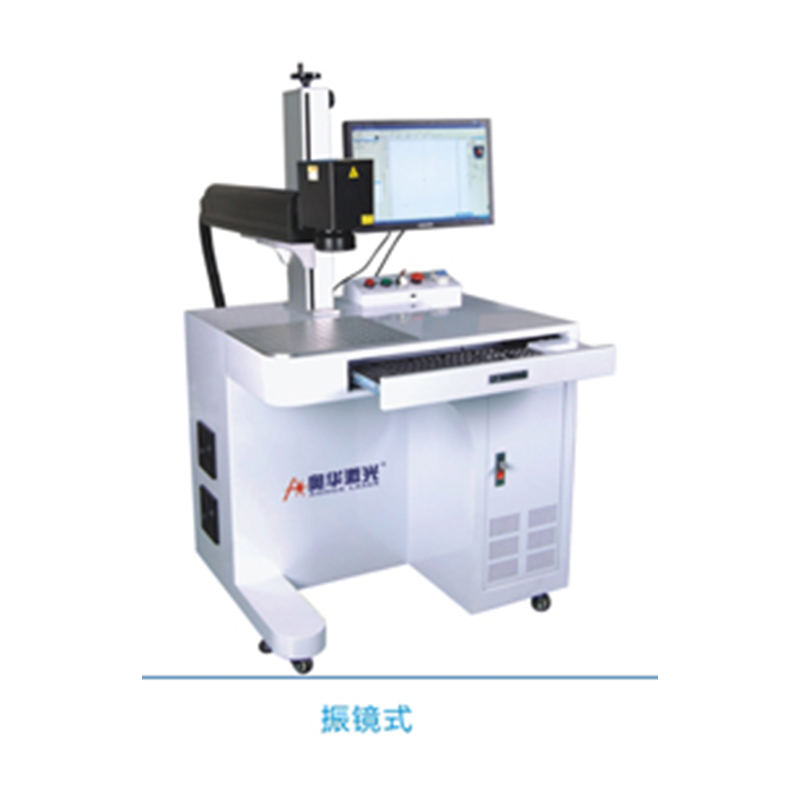

| Laser welding machine | Galvanometer laser welding machine | Laser continuous welding machine |
Stable performance and long service life. Adopting professional light path and power supply design, the performance and light output of the whole machine are stable, and the machine life is long. Strong light consistency and high solder joint quality. Various patterns can be welded between metals or different metals, and the solder joints are smooth and beautiful. | Small, extremely small heat generated during welding, and extremely small thermal deformation, especially suitable for welding thin stainless steel parts. Features Fast welding speed, small focus spot, high positioning accuracy. | Continuous laser welding machine is to weld the laser frequency, pulse width, worktable speed, moving direction, welding point, line, circle, ellipse, square and other plane arbitrary trajectory and simple spatial geometric trajectory high-tech welding, can achieve two-axis , Three-axis or four-axis linkage welding, can be sealed welding, tailor welding, etc. Features Stable performance, wide application range, high work efficiency, good welding effect, and can be used for welding complex workpieces. |
| Model | AHL-FW200 | AHL-FW400 |
| Max laser power | 200W | 400W |
| Max monopulse power | 90J | 110J |
| Laser wavelength | 1064nm | 1064nm |
| Wave type | Double pulse combination | Double pulse combination |
laser welding depth | 0.1-1.2mm | 0.1-1.6mm |
| Pulse width | 0.2-20ms | 0.2-20ms |
| Continuous laser welding frequency | 1-40Hz | 1-40Hz |
| Adjustable range of spot size | 0.4-2.0mm | 0.4-2.0mm |
| Fiber length | 3m/5m/10m/20m | 3m/5m/10m/20m |
| Trigger method | Internal control / external control | Internal control / external control |
| Number of fibers | 1-4 | 1-4 |
| Spectroscopic method | Energy splitting /energy feedback | Energy splitting / energy feedback |
| Feedback method | Current feedback /energy feedback | Current feedback / energy feedback |
| Total power | ≤9KW | ≤12KW |
| Electricity demand | 220VAC/50Hz | 380VAC/50Hz |
| Main engine | Length*Width*Height: 890*530*1030mm Weight: 125KG | |
| Cooling cabine | Length*Width*Height: 790*630*880mm Weight: 87KG | |
