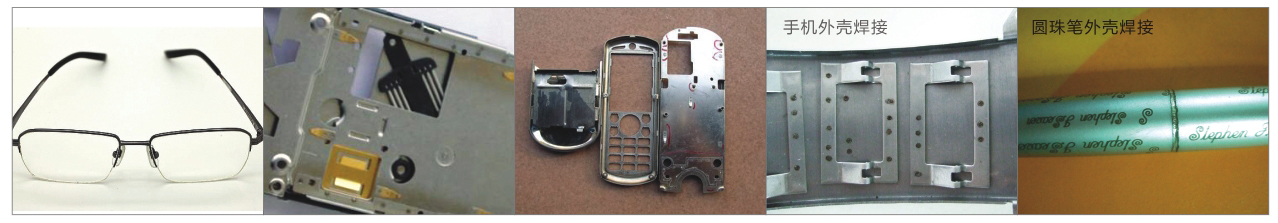

1. Mobile phone batteries, jewelry, electronic components, sensors, clocks, glasses, precision machinery, communications, mobile phone shell, bracelets, handicrafts, etc;
2. All kinds of mold steel, stainless steel, aluminum, copper, alloy products and die manual welding semi-automatic welding.

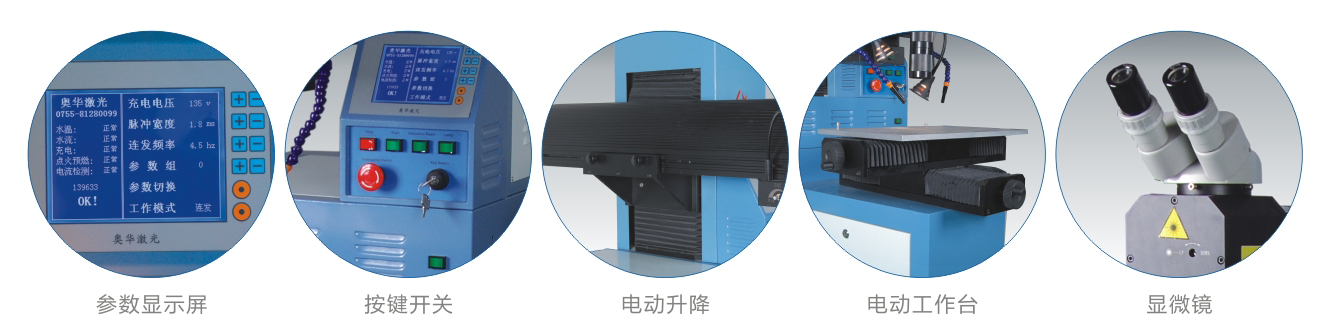

1. Electric adjustment of laser focus;
2. Adjust the spot size electrically;
3. Electric control XY Axis table, and optional electric CNC automatic welding function;
4. Integrated, small size, flexible and convenient operation.
Model | AHL-MFW200 | AHL-MFW400 |
| Max laser power | 200W | 400W |
| Laser wave length | 1064nm | 1064nm |
| Max monopulse power | 90J | 110J |
| Laser welding depth | 0.1-0.8mm | 0.1-1.2mm |
| Pulse width | 0.2-20ms | 0.2-20ms |
| Pontinuious welding frequency | 0.5-20Hz | 0.3-100Hz |
| Facula size adjustable range | 0.2-2mm | 0.2-2mm |
| Waveform quantity | 2 sets | 2 sets |
| Power consumption | ≤7KW | ≤11KW |
| Electric demand | 220V±10%/50Hz/40A | 380V±10%/50Hz/40A |
| Control system | CNC | CNC |
| Positioning | Red light/CCD | Red light/CCD |
| Standard worktable max bearing | 50Kg | 150Kg |
| Worktable route | 200mm x 200mm | 500mm x 500mm |
| Worktable positioning acuracy | ±0.02mm | ±0.02mm |
